The low profile overlay kit is perfect for any room in the house or in a work setting too, offering heat without a huge heating bill.
But when there is no opportunity to dig down or the existing floor is floating, such as floorboards, you need a low profile, robust solution – and our underfloor heating kit is the answer.

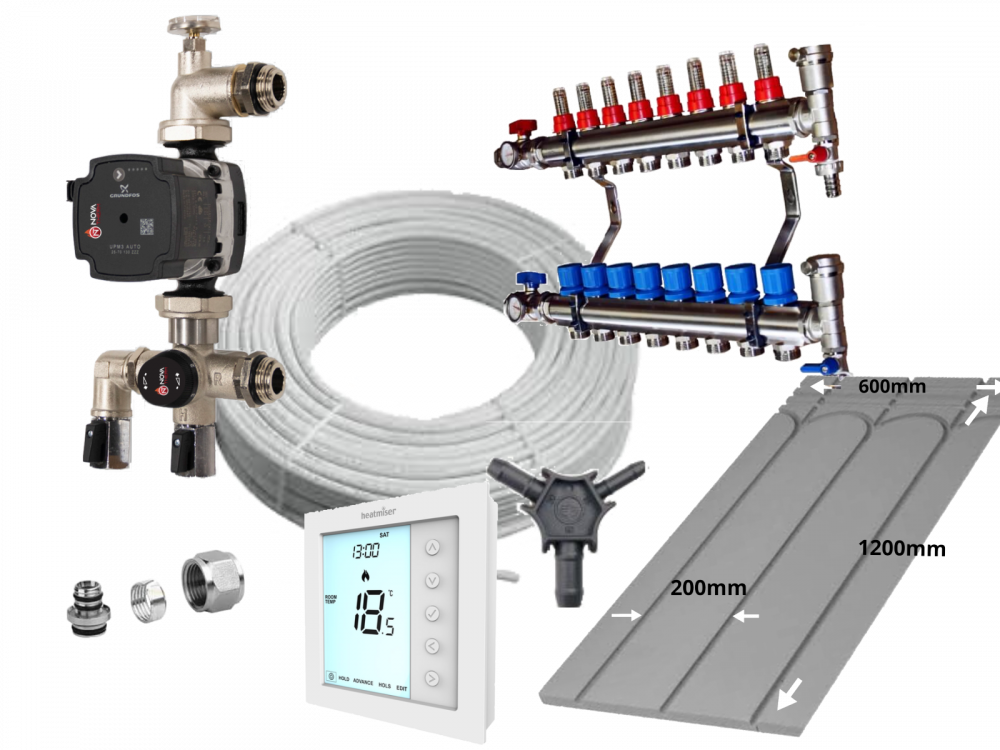

Everything in one box
When we say everything is included in our kit, we mean it;
-- 25mm x 1200mm x 600mm low profile overlay panels for use on a hard sub floor or floating floor (x140)
-- An A-rated Grundfos 15-50/60 heat pump
-- Digital thermostat for easy control of temperature
-- 16mm Professional grade Pex al Pex plastic piping that doesn’t warp or split (x500)
-- 5 Port Dualmix manifold faultless performance time after time Including: Manifold Isolating Valves x 2 - Temperature Guage x 2 - Lockshields with flow meters on each port - Drain/fill valves with blank cap x 2 - Automatic air vent x 2 - Metal fixing brackets x 2
-- Reaming tool
Order online today
Order is simple.
Choose the right low profile overlay system size that you need and checkout using our secure payment method or use PayPal.
These 25mm solid-floor panels are the ideal solution for the installation of an underfloor water heating system with a tiled-finish floor covering. This product is suitable for both domestic and commercial use. The panels have been made from super-insulated extruded polystyrene, making them ideal for direct use under tiled flooring. The panels are 1,200mm x 600mm x 25mm pre grooved to take 16mm pipe @ 200mm centres and must be installed onto a suitable existing subfloor, such as solid concrete or screeded floors. They are also suitable for structurally sound wooden subfloors such as 25mm exterior plywood.
After bonding the floor and panels simply stick down with flexible tile adhesive and allow to set. Then cover with a 5mm self levelling screed before the final floor covering.
Coverage:- 1200mm x 600mm x 25mm = 0.72m2
