Bespoke CAD System Plan

We offer a full CAD Design Service for your underfloor heating projects to create a fully bespoke system to perfectly meet your underfloor heating requirements.

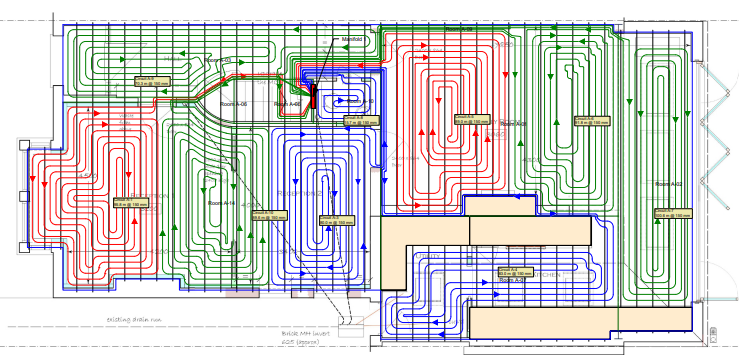

Our CAD design software helps us create professional pipe layout drawings that demonstrate the recommended pipe placings, coil lengths and the spacings between pipe centres to create the most efficient system for your needs.

Incl. Vat: £60.00 £50.00

Availability: In stock

SKU

BSP-CAD

All we need is a floor plan of your proposed underfloor heating project which can be in the form of a PDF, CAD drawing, JPEG image or even a scanned drawing with dimensions of the floor space. Please also indicate on the plan, the areas/rooms where you wish for the underfloor heating to be installed as well as your preferred manifold location (for example in a utility room or cupboard under the stairs). Also, please add your phone number to your plan so we can contact you if we need more details from you.

This is a free service for anyone purchasing a system from Underfloor Heating Trade Supplies and upon request, will be emailed to you, once the system is purchased and can be used by your installer to help navigate the installation process.

If you require a copy of your plan before the system is purchased, then we can email you a copy if you place a deposit of £50.00 which will be fully refunded once the system is purchased. This can be done by adding this product to you shopping cart and go through the checkout process as normal. We can complete your design in as little as a couple of hours for smaller projects but please allow up to 24 hours for larger, multi-story projects.

We look forward to working with you to create the highest quality underfloor heating project at the best possible value from the whole team here at Underfloor Heating Trade Supplies.
