Top quality components in every box

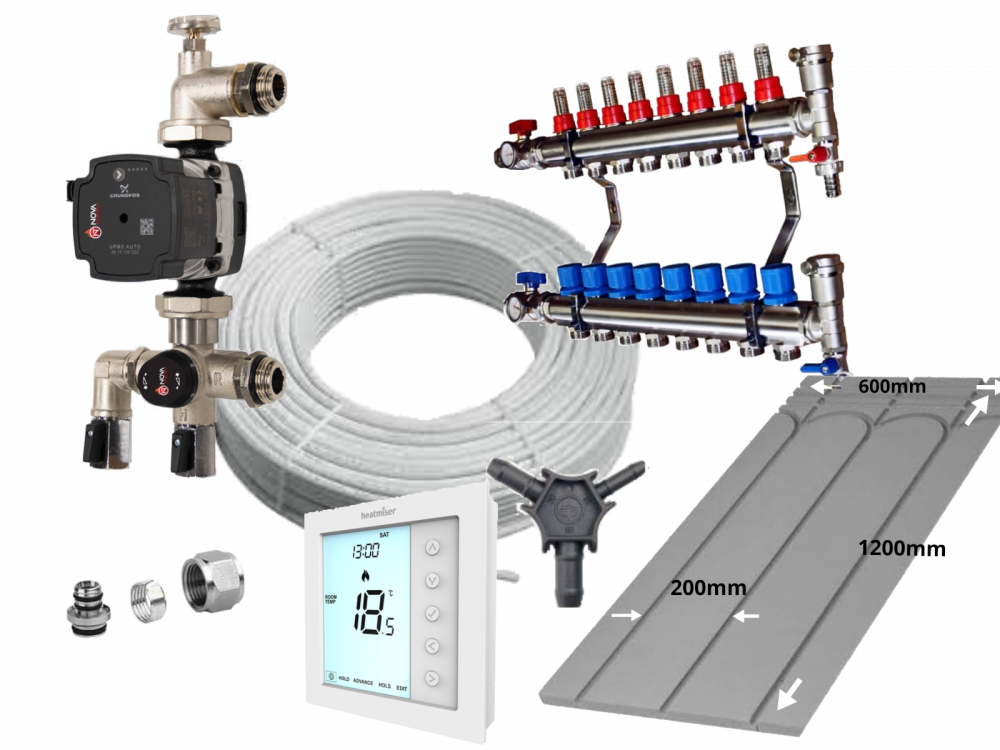

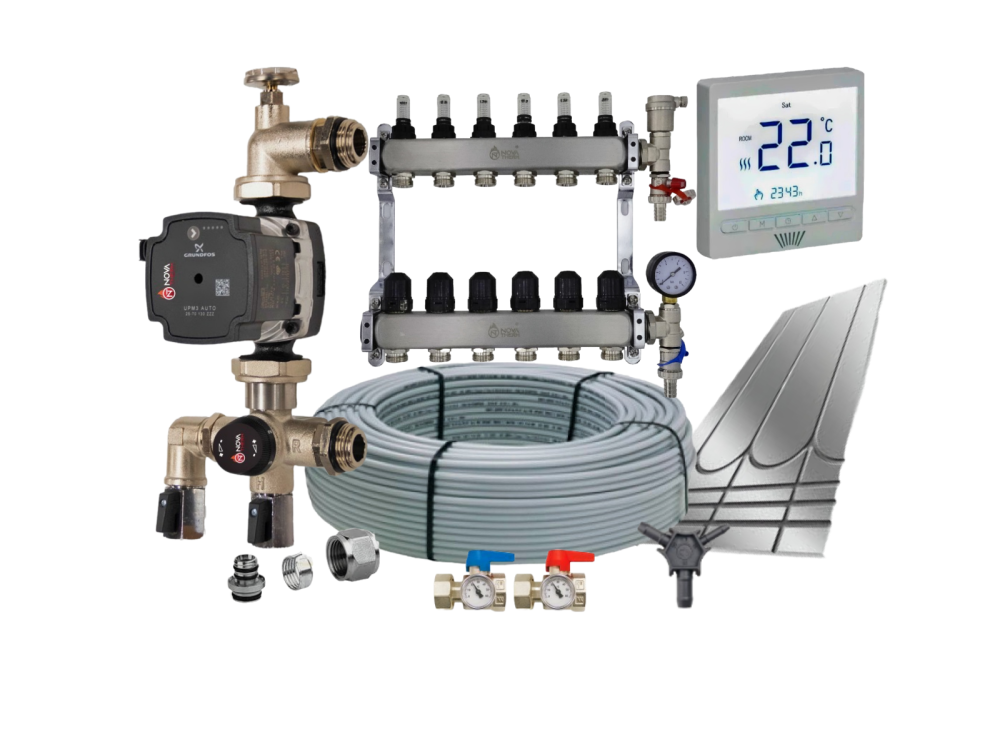

There are no substitutes in our wet underfloor heating kits;
- Novatherm™ 16mm MLCP piping – one of the most respected names in the business, this professional grade, high quality plastic piping is guaranteed non-split up to 95°c and 10bar of pressure.
- Novatherm™ Dualmix manifold – with high quality with isolating valves, temperature gauges, lock shield with flow metres on each port, drain and fill valves with blank cap, automatic air vents and metal fixing brackets for flawless performance.
- Reaming tool included – no need to invest in an expensive tool you will use only a few times. The reaming tool for ensuring secure, leak-proof fit between pipe and manifold connectors is included.
- Energy efficient components – the system is only as efficient as the heat pump which is why we only use A+ Grundfos 3 Speed circulation rated pumps as part of our kits.
- Everything you need in one box – including edge insulation and easy-to-programme thermostat for the most responsive heating system you need.
Kit contents:
For the full details of what is included as standard in your kit, please follow the link below for the kit size you require and you will find more details of the kit in the description section;
20sq/m
30sq/m
40sq/m
50sq/m
60sq/m
70sq/m
80sq/m
90sq/m
100sq/m
Buy online today
Checkout using our secure payment system by adding your kit to you cart. For more help, or for answers to any questions, call our friendly, expert team on 01625 569528 or email us info@underfloorheatingtradesupplies.co.uk.
Next Working Day Delivery
Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.
Free delivery
UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.
Additional Information
Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.
These 25mm solid-floor panels are the ideal solution for the installation of an underfloor water heating system with a tiled-finish floor covering. This product is suitable for both domestic and commercial use. The panels have been made from super-insulated extruded polystyrene, making them ideal for direct use under tiled flooring. The panels are 1,200mm x 600mm x 25mm pre grooved to take 16mm pipe and must be installed onto a suitable existing subfloor, such as solid concrete or screeded floors. They are also suitable for structurally sound wooden subfloors such as exterior plywood.
After bonding the floor and panels simply stick down with flexible tile adhesive and allow to set. Then cover with a 5mm self levelling screed before the final floor covering.
Coverage:- 1200mm x 600mm x 25mm = 0.72m2
