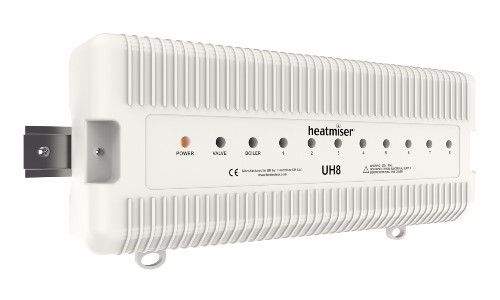

Heatmiser - 8 Zone 230V Wiring Centre

PRODUCT CODE - uh8

Be the first to review this product

Key Features
-------------------
8 Zone
Compatible with 230v Thermostats
UFH Pump and Valve Control
Boiler Output


Availablity:
|
brand: No
|
Price:
£63.50 Incl. Tax: £76.20

Availability: In stock






The Heatmiser UH8 is designed to work with our 4 channel 230v time clock (TM4) and 230v Set back thermostat (DS-SB) but equally could be used with any 230v room thermostat.



Up to 8 zones can be controlled from the UH3. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow. 2 additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.



A simple slide switch makes zone 8 suitable forcontrolling a radiator zone. When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler.Up to 4 actuators can be connected to each zone.



Dimensions (HxWxD) 220x290x70mm



Specification

 .

Further Details - Click Here

Image result for pdf image

Installation

  Produt Data - click here
