Low Profile Underfloor Heating Kit - 43 SQ/M


Be the first to review this product

Water underfloor heating is one the most efficient forms of heating a home or business premises. But there was one drawback – it meant expensive digging down into the sub floor of existing properties.

But not with our low profile underfloor heating kit. Take a look at what is included in our complete kit.


brand: No

Regular Price: £1,740.00

Special Price £1,225.00 Incl. Tax: £1,470.00

Availability: In stock

Water underfloor heating is efficient and cost effective but not when you factor in the cost of digging into the sub-floor.

With our low profile underfloor heating kit, you don’t need to and the overlay panels are perfect for adding underfloor heating to a floating floor.

Everything you need in one box

Everything you need is included in the kit and because we don’t compromise on quality, you have only the best components for your system;

  • WRAS approved, Pex Al Pex plastic piping is high strength and will not warp or split
  • The reaming tool ensures that there is no damage as you connect the pipe to the connectors
  • The low profile overlay boards measure 15mm x 600mm x 600mm, perfect for creating a stable base for the piping loops
  • The Grundfos 15-50/60 heat pump is one of the most energy efficient on the market, marking excellent heat output without draining too much energy
  • The digital thermostat is programmable and easy to use, perfect for setting heat requirements throughout the day and night
  • Robust Dualmix manifold with isolating valves, temperature gauges, lock shield with flow metres on each port, drain and fill valves with blank cap, automatic air vents and metal fixing brackets gives thousands of hours’ flawless performance

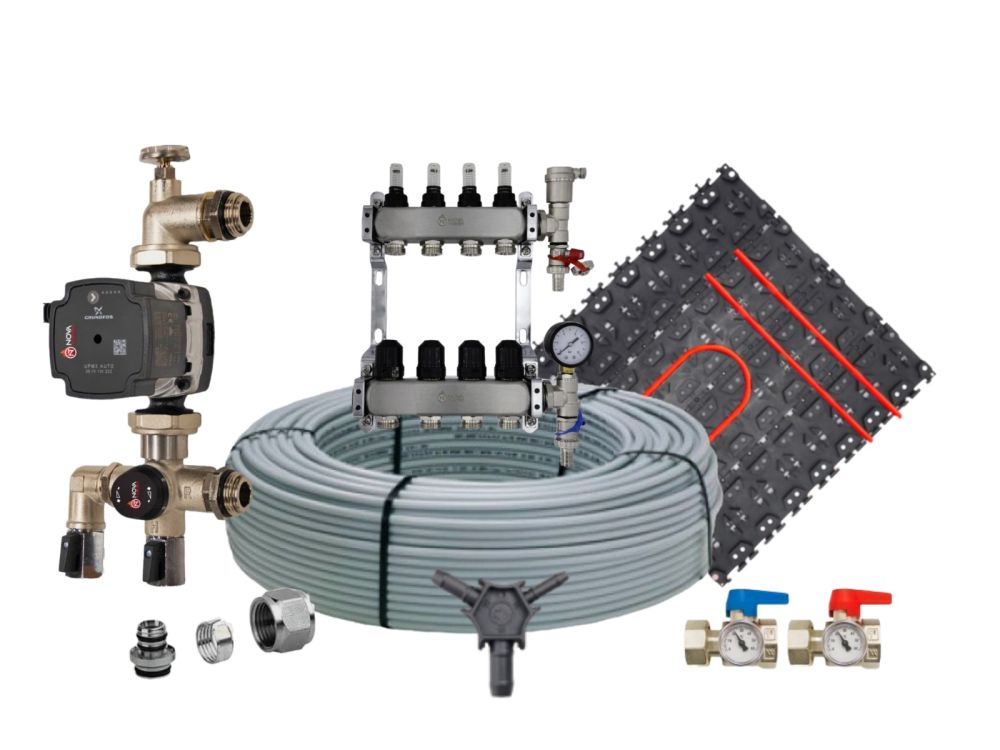

Kit contents:
– Temperature control and pump unit
– 4 Zone Dualmix Manifold -- Including: Manifold Isolating Valves x 2 - Temperature Guage x 2 - Lockshields with flow meters on each port - Drain/fill valves with blank cap x 2 - Automatic air vent x 2 - Metal fixing brackets x 2
– PEX-AL-PEX 12mm Pipe [320]
– Pipe Reamer
– Connector Cores (x8)
– Low Profile Panels (x120)
– Programmable Thermostat

Ordering your kit is simple too

You can order online, checking out using PayPal or our secure online payment system. Next working day delivery is FREE so you can have your system installed in next to no time.

You can order via phone too – just call 01625 573454. Got a question or need to know more? Drop us a line



Installation details - click here
