Low Profile Underfloor Heating Kit - 32 SQ/M

Our low profile water underfloor heating kits offer everything you need to install the system on an existing floor, including a floating floor. Compatible with most modern condensing boilers, the kit is easy to install too.

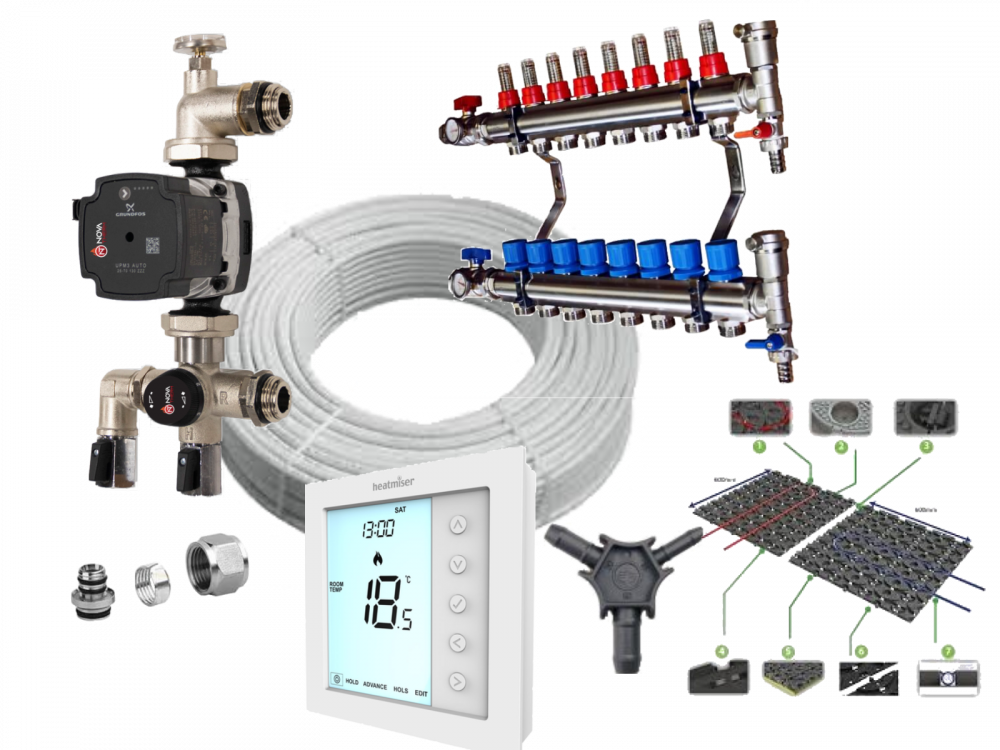

What’s included?

• 15mm thick low profile panels, measuring 600mm by 600mm making the perfect base for the plastic pipe loops that will run from and to the manifold
• Pex Al pex plastic piping, which is WRAS approved, will not warp or split under pressure or in changes of temperature
• A digital, programmable room thermostat
• The low energy Grundfos 15-50/60 heat pump makes the system one of the most cost effective to run
• Dualmix manifold with isolating valves, temperature gauges, lock shield with flow metres on each port, drain and fill valves with blank cap, automatic air vents and metal fixing brackets
• Reaming tool for effective shaping of the plastic piping

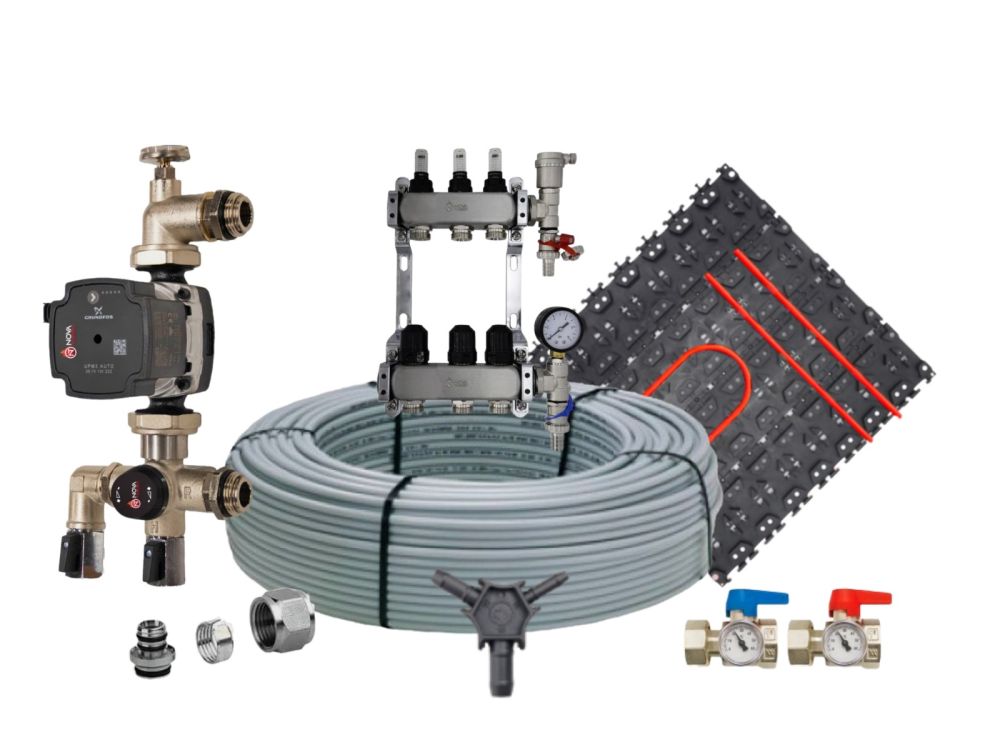

Kit contents:
– Temperature control and pump unit
– 3 Zone Dualmix Manifold -- Including: Manifold Isolating Valves x 2 - Temperature Guage x 2 - Lockshields with flow meters on each port - Drain/fill valves with blank cap x 2 - Automatic air vent x 2 - Metal fixing brackets x 2
– PEX-AL-PEX 12mm Pipe [240]
– Pipe Reamer
– Connector Cores (x6)
– Low Profile Panels (x90)
– Programmable Thermostat

How to order

Ordering is really simple too. You can order online, using PayPal or our secure checkout system.

You can call us too on 01625 573454. All of our kits are delivered the next working day at no extra cost to you!

Have a question? Need to help selecting the right underfloor heating kit? Drop a line to our expert team info@underfloorheatingtradesupplies.co.uk

Installation details - click here
