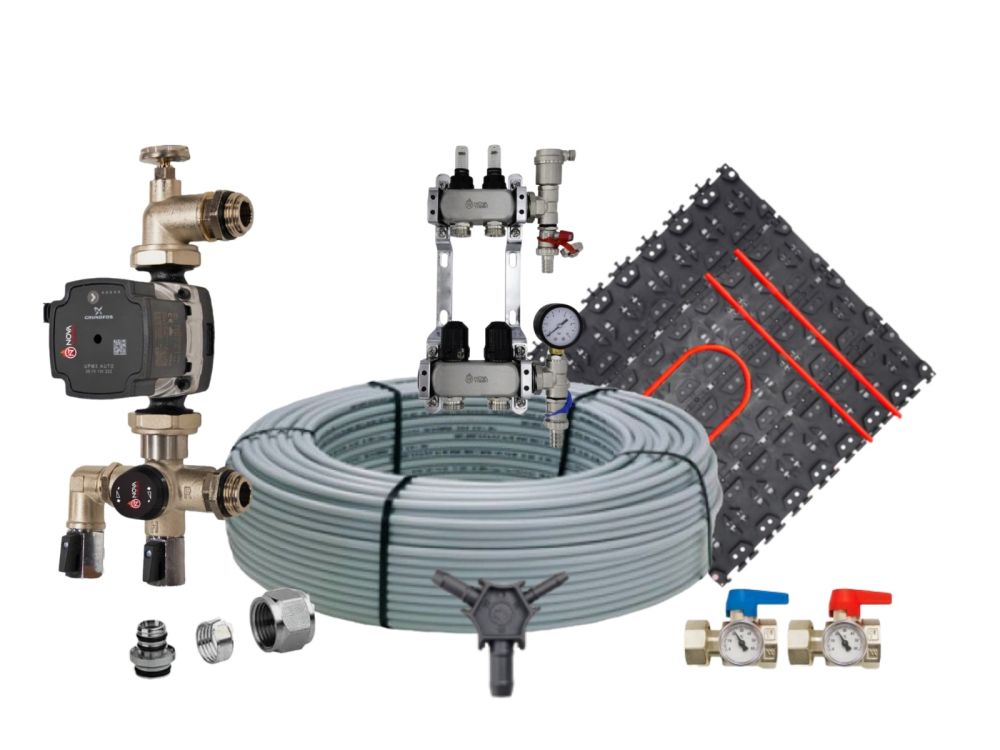

ProFix Low Profile Underfloor Heating Kit 10m²

The ProFix Low Profile Underfloor Heating Kit 10m² is a high-efficiency solution for small zones such as utility areas or en-suites. Its 18mm system height allows retrofitting over existing floors while maintaining excellent thermal output.

10m² Underfloor Heating Kit Features

Covers 10 square metres
Pre-grooved fixing panels for straightforward pipe layout
Slim 18mm build height for retrofit use
Includes manifold, pipework, and fittings
Suitable for tile, vinyl, or laminate surfaces
Fast, even heating across the floor area

Compact Efficiency for Tight Spaces

Perfect for restricted installations, the 10m² ProFix Kit provides professional-level heating in smaller environments. Order from Underfloor Heating Trade Supplies for consistent, efficient warmth.

Shipping

Next Working Day Delivery

Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.

Free delivery

UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.

Additional Information

Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.

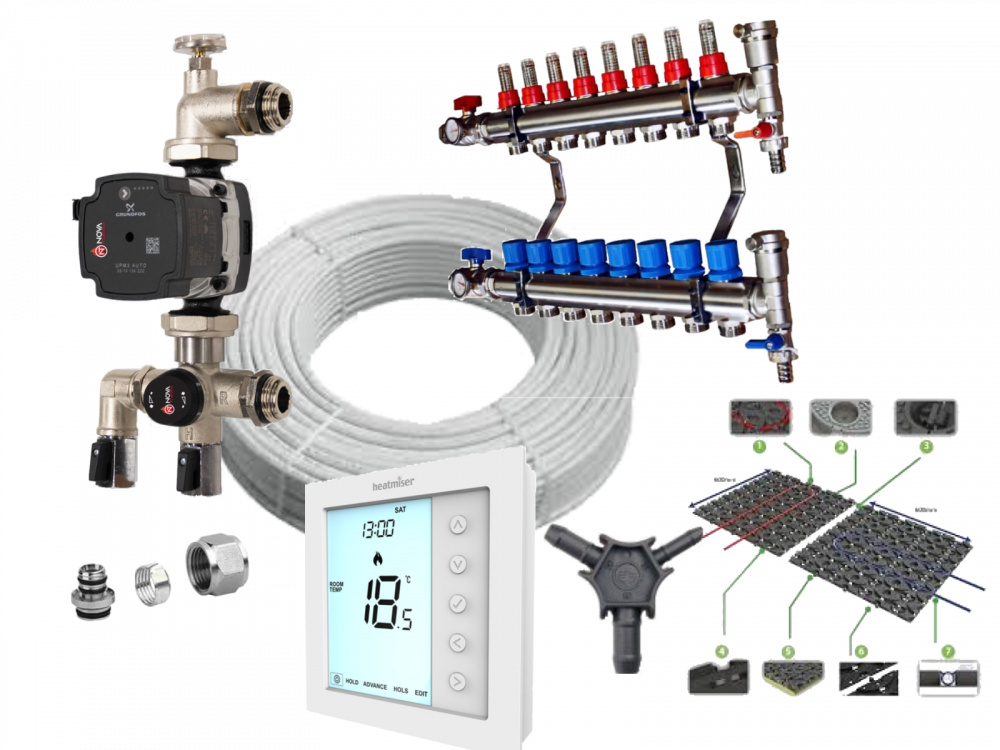

Specification


Item	Qty
Grundfos 15-50/60 Pump Unit	1
2 Zone Dualix Manifold, including:	1
Manifold Isolating Valves	2
Temperature Gauges	2
Lockshields with flow meters on each port	–
Drain/fill valves with blank cap	2
Automatic air vents	2
Metal fixing brackets	2
Digital Programmable Thermostat	1
Novatherm MLCP 12mm Pipe	80M
Connector Cores	4
Pipe Reamer Tool	1

Reviews

FAQs

Frequently Asked Questions

What is the total floor build-up when installing the ProFix Low Profile Kit?

The total floor build-up for installing the ProFix Low Profile Underfloor Heating Kit is 15mm panels designed for 10 to 12mm pipework, creating a slim overall system depth of around 15 to 20mm once the pipe and a thin layer of levelling compound are included. This makes it ideal for retrofit projects or properties where raising floor levels must be kept to a minimum. Actual build-up can vary slightly depending on the type of screed, insulation board, and final floor covering used.

What heat output can I expect from this 10m² low profile system?

The heat output of a 10m² low profile system depends on the flooring type. At an average water temperature of 30 °C, typical performance levels are: Tiles or stone flooring: approx. 56 W/m², Vinyl or thin laminate (<6 mm): approx. 40 W/m² and Carpet with 1.5 tog underlay: approx. 30 W/m²

What type of pipe does the 10m² low profile kit include, and how is it fitted into the panels?

The 10m² low profile kit includes a Premium triple-layered European Standard pipe, which slots easily into the pre-grooved fixing panels to ensure a straightforward pipe layout within each 15mm castellated panel. Once laid, the pipe remains firmly in position during screeding or levelling, ensuring a smooth, even heat distribution.
