NovaDeck 20mm: Technical Specifications and Installation Guide

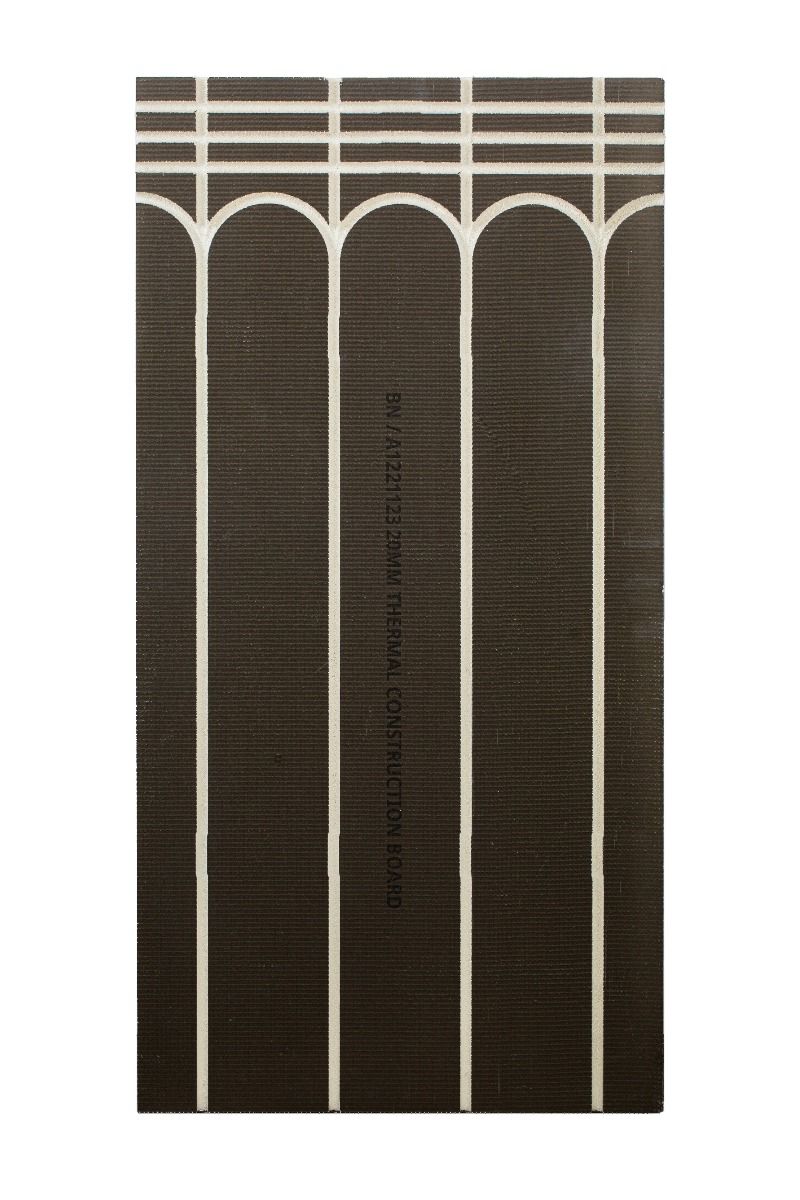

Designed for 16mm wet underfloor heating pipe at 150mm centres, this 20mm cement-faced XPS panel offers a slim retrofit solution without a conventional thick screed layer. The high-strength XPS 300 core, factory-routed channels and tough cementitious face help installers create an efficient, consistent pipe layout on a suitable structural subfloor.
Technical specifications
| Panel dimensions | 1200 x 600 x 20mm |
|---|
| Coverage per full board | 0.72m² |
|---|
| Suitable pipe diameter | 16mm |
|---|
| Pipe spacing | 150mm centres |
|---|
| Core | High-density extruded polystyrene (XPS 300) |
|---|
| Strength at 10% compression | 300 kPa |
|---|
| Surface | Fibreglass mesh-reinforced cementitious coating |
|---|
| Thermal conductivity | 0.033 W/mK — supplier 20mm reference datasheet; confirm with Novatherm |
|---|
| Reaction-to-fire classification | Euroclass E — supplier 20mm reference datasheet; confirm with Novatherm |
|---|
| Reference temperature range | -50°C to +75°C — supplier 20mm reference; verify |
|---|
| Reference weight | 2.6 kg per board — supplier 20mm reference; verify |
|---|
| Reference water absorption | 0.8% by volume (BS EN 12087) — supplier 20mm reference; verify |
|---|
Key benefits
- Correctly sized channels for 16mm underfloor heating pipe at 150mm centres
- Low-profile 20mm panel for retrofit work and projects with limited floor build-up
- Reinforced cement face suitable for direct tiling with the correct adhesive
- XPS insulation core with 300 kPa compressive strength
- Pre-formed pipe routes with returns to reduce on-site preparation
- Lightweight, easy-to-handle 1200 x 600mm boards
Suitable subfloors and fixing
Install onto a clean, flat, level and fully supported substrate. Suitable bases include cured concrete or screed, structural plywood or cement fibreboard; traditional timber floorboards may need overlay boarding. Use an appropriate combed flexible tile adhesive over suitable solid substrates and manufacturer-approved mechanical fixings on timber. Check moisture conditions and use a damp-proof membrane where required by the floor design.
Floor finishes
Tiles and natural stone can be fixed to the cementitious panel surface using a suitable flexible tile adhesive and the flooring manufacturer’s instructions. Vinyl, carpet, engineered wood and laminate require the specified levelling compound or separating layer. Follow the current Novatherm installation manual for preparation, curing times, floor-finish suitability and commissioning.
