Novapro Overlay Dual Purpose Wet Underfloor Kit - 120m2

The NovaPro Overlay Dual Purpose 120m² Underfloor Heating Kit offers efficient heating for large domestic and commercial spaces. The kit provides steady warmth throughout expansive spaces and is easy to install.

Incl. Vat: £3,120.00 £2,600.00
Availability: In stock
SKU
NPRO120
We found other products you might like!

NovaPro Overlay Dual Purpose Wet Underfloor Heating Kit – 120m²

The NovaPro 120m² Dual Purpose Overlay Wet Underfloor Heating Kit is designed for substantial multi-room properties and large open-plan layouts. Its 20mm low-profile panels provide a route to installing a water-based underfloor heating system over a suitably prepared existing floor, without the depth of a conventional screeded installation. This kit is a practical choice for a large-area renovation requiring careful circuit planning.

Why choose this 120m² overlay underfloor heating kit?

  • 20mm low-profile overlay panels help keep floor build-up to a minimum.
  • 150mm pipe centres support even distribution of warmth across the planned heated area.
  • Dual-purpose flooring compatibility: suitable for tile and wood finishes when installed to the relevant floor-finish and panel instructions.
  • Water underfloor heating components: includes pipework, mixing controls, a circulation pump and a 8-zone manifold.
  • Designed for approximately 120m² of heated floor area, subject to layout.

Planning your installation

Check the net heated area, subfloor preparation, insulation, heating design and maximum pipe circuit lengths before ordering. The 20mm measurement refers to the overlay panel only; adhesives, levelling layers and your final floor covering can increase the finished floor height. Thermostats, wiring centres and other installation accessories may need to be selected separately. If you would like help choosing components for your project, contact Underfloor Heating Trade Supplies before ordering.

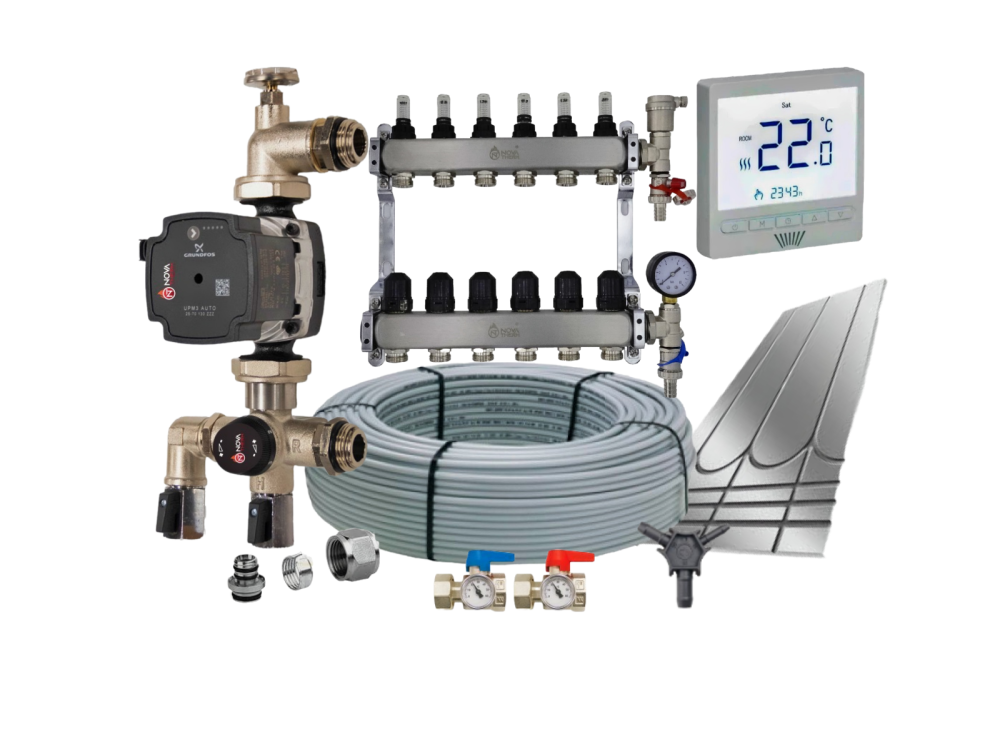

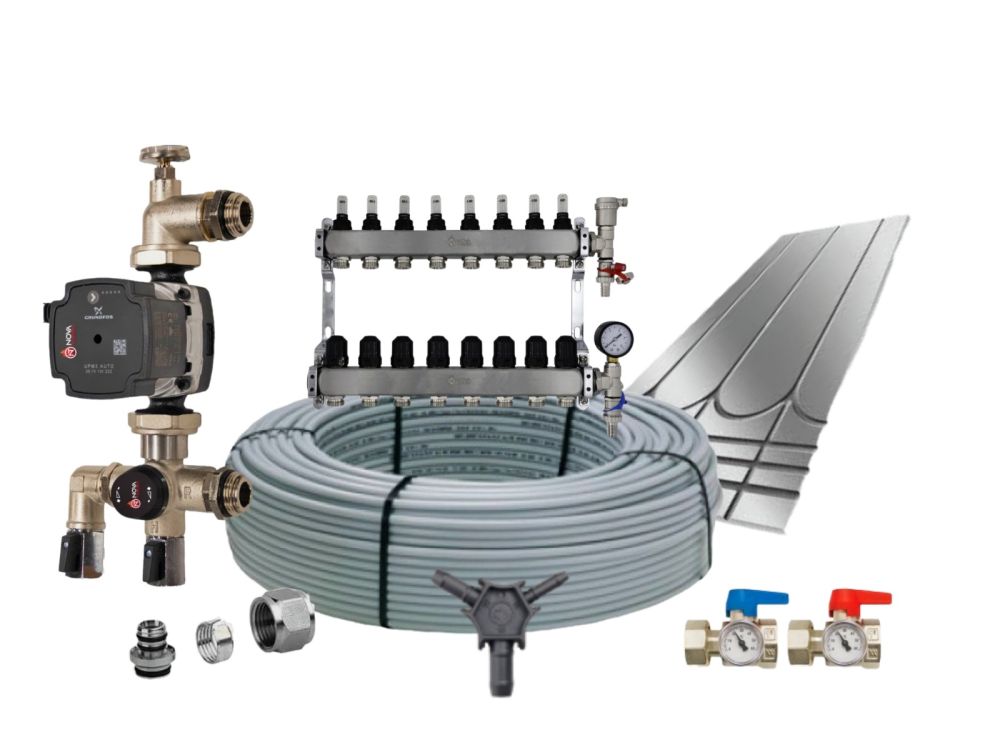

What's included in the 120m² kit?

Component Quantity
NovaPro Premium Dual Purpose Overlay Panels (400kPa compressive strength; 100 micron aluminium reflective foil covering) 167
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump 1
Automatic Temperature Control Unit & Thermomix Blending Valve 1
Professional Grade 16mm Underfloor Heating Pipe 800m
8-Zone Dualix Manifold (including isolating valves, temperature gauges, flow meters, drain/fill valves, automatic air vents and fixing brackets) 1
Pipe Reaming Tool 1
Pipe Connector Cores 16

Check the supplied kit specification and optional component selections before purchase. Floor covering, levelling compounds, adhesives and controls are not assumed to be included.

Need help specifying your project? Contact Underfloor Heating Trade Supplies for friendly advice before placing your order.

Next Working Day Delivery

Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.

Free delivery

UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.

Additional Information

Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.

Novapro Premium Dual Purpose Panels
•High strength: 400kPa compressive strength
•High output: 100 micron aluminium reflective foil covering
167
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump 1
Automatic Temperature Control Unit & Thermomix Blending Valve 1
5 Layer Professional Grade European Standard 16 mm Underfloor Heating Pipe 800M
8 Zone Dualix Manifold, including: 1
Manifold Isolating Valves 2
Temperature Gauges 2
Lockshields with flow meters on each port –
Drain/fill valves with blank cap 2
Automatic air vents 2
Metal fixing brackets 2
Pipe Reaming Tool 1
Pipe Connector Cores 16
