NovaPro Overlay Dual Purpose Wet Underfloor Heating Kit – 90m²

The NovaPro 90m² Dual Purpose Overlay Wet Underfloor Heating Kit is designed for an extensive open-plan area or multiple connected rooms. Its 20mm low-profile panels provide a route to installing a water-based underfloor heating system over a suitably prepared existing floor, without the depth of a conventional screeded installation. This kit is a practical choice for a sizeable refurbishment where screed depth is impractical.

Why choose this 90m² overlay underfloor heating kit?

20mm low-profile overlay panels help keep floor build-up to a minimum.
150mm pipe centres support even distribution of warmth across the planned heated area.
Dual-purpose flooring compatibility: suitable for tile and wood finishes when installed to the relevant floor-finish and panel instructions.
Water underfloor heating components: includes pipework, mixing controls, a circulation pump and a 6-zone manifold.
Designed for approximately 90m² of heated floor area, subject to layout.

Planning your installation

Check the net heated area, subfloor preparation, insulation, heating design and maximum pipe circuit lengths before ordering. The 20mm measurement refers to the overlay panel only; adhesives, levelling layers and your final floor covering can increase the finished floor height. Thermostats, wiring centres and other installation accessories may need to be selected separately. If you would like help choosing components for your project, contact Underfloor Heating Trade Supplies before ordering.

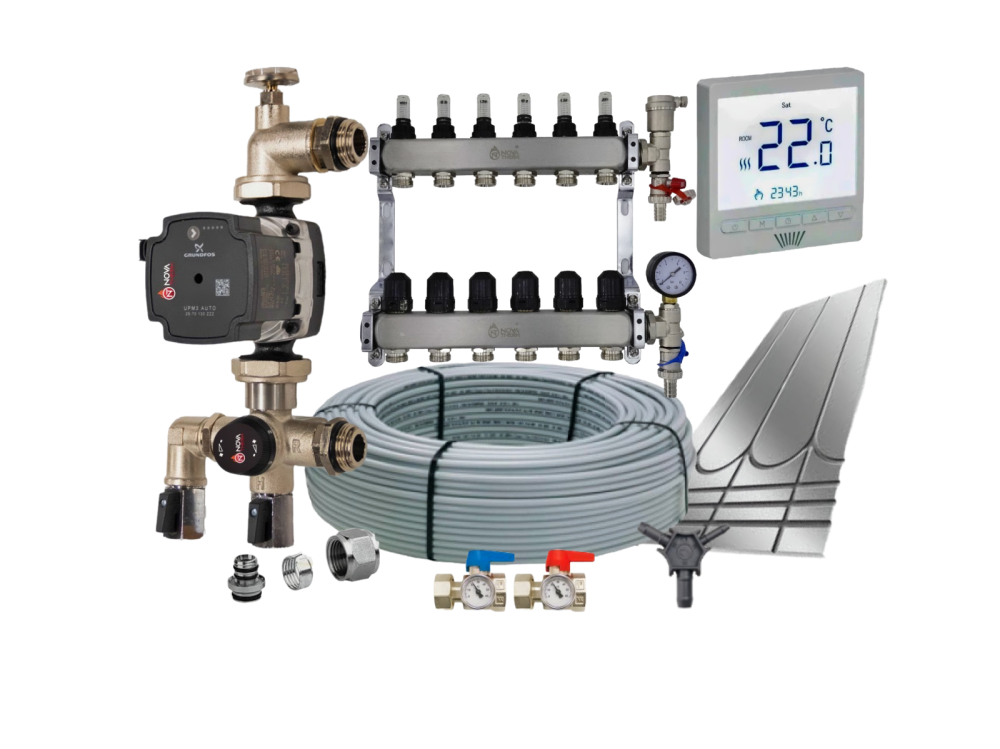

What's included in the 90m² kit?

Component	Quantity
NovaPro Premium Dual Purpose Overlay Panels (400kPa compressive strength; 100 micron aluminium reflective foil covering)	125
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump	1
Automatic Temperature Control Unit & Thermomix Blending Valve	1
Professional Grade 16mm Underfloor Heating Pipe	600m
6-Zone Dualix Manifold (including isolating valves, temperature gauges, flow meters, drain/fill valves, automatic air vents and fixing brackets)	1
Pipe Reaming Tool	1
Pipe Connector Cores	12

Check the supplied kit specification and optional component selections before purchase. Floor covering, levelling compounds, adhesives and controls are not assumed to be included.

Need help specifying your project? Contact Underfloor Heating Trade Supplies for friendly advice before placing your order.

Shipping

Next Working Day Delivery

Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.

Free delivery

UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.

Additional Information

Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.

Specification


Item	Qty
Novapro Premium Dual Purpose Panels •High strength: 400kPa compressive strength •High output: 100 micron aluminium reflective foil covering	125
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump	1
Automatic Temperature Control Unit & Thermomix Blending Valve	1
5 Layer Professional Grade European Standard 16mm Underfloor Heating Pipe	600M
6 Zone Dualix Manifold, including:	1
Manifold Isolating Valves	2
Temperature Gauges	2
Lockshields with flow meters on each port	–
Drain/fill valves with blank cap	2
Automatic air vents	2
Metal fixing brackets	2
Pipe Reaming Tool	1
Pipe Connector Cores	12

Installation

To view installation video click here

Reviews

FAQs

Frequently Asked Questions

What floor area is the Novapro Overlay Dual Purpose 90m² Kit intended to serve?

The Novapro Overlay Dual Purpose 90m² Kit is engineered for coverage of up to 90 square metres, making it ideal for a spacious open-plan living area or a number of connected rooms totalling around 90m². As this kit includes pipework and components sized for that total area, you’ll get a proper fit without excess or shortfall.

Which flooring types and existing sub-floors can a Novapro Overlay Dual Purpose 90m² Kit accommodate?

This Novapro Overlay Dual Purpose Underfloor Heating Kit is specifically described as “overlay” and “dual purpose”, meaning it works over existing floors without major build-up. The underlying panels are just 20mm deep and can accept finishes like tile, vinyl, laminate or engineered wood. Therefore, if you’re upgrading from concrete or a sound timber/flooring layer, you can install the Novapro kit with your preferred surface above, with minimal disruption and floor height rise.

How does the “dual purpose” feature benefit the underfloor heating kit?

The “dual purpose” attribute of the Novapro Overlay Dual Purpose Kit means it serves two functions simultaneously: insulation + pipe routing, and future-proofing for different surface finishes. As the foil-faced EPS panels (400 kPa compressive strength) integrate the pipe paths, you gain efficient heat transfer as well as a low-profile overlay suitable for multiple flooring types. In practical terms, you’ll benefit from quicker installation, less floor height increase and flexibility in choosing your final floor finish (tile, vinyl, laminate, wood).
