Novapro Overlay Dual Purpose Wet Underfloor Kit - 70m2

The NovaPro Overlay Dual Purpose Kit 70m² features include being only 20mm deep, fitting 16mm pipes and able to be used with tile, wood and laminate.

Incl. Vat: £1,980.00 £1,650.00
Availability: In stock
SKU
npro70
We found other products you might like!

NovaPro Overlay Dual Purpose Wet Underfloor Heating Kit – 70m²

The NovaPro 70m² Dual Purpose Overlay Wet Underfloor Heating Kit is designed for open-plan living spaces or several adjoining rooms. Its 20mm low-profile panels provide a route to installing a water-based underfloor heating system over a suitably prepared existing floor, without the depth of a conventional screeded installation. This kit is a practical choice for a larger retrofit or property upgrade.

Why choose this 70m² overlay underfloor heating kit?

  • 20mm low-profile overlay panels help keep floor build-up to a minimum.
  • 150mm pipe centres support even distribution of warmth across the planned heated area.
  • Dual-purpose flooring compatibility: suitable for tile and wood finishes when installed to the relevant floor-finish and panel instructions.
  • Water underfloor heating components: includes pipework, mixing controls, a circulation pump and a 5-zone manifold.
  • Designed for approximately 70m² of heated floor area, subject to layout and heat-loss calculations.

Planning your installation

Check the net heated area, subfloor preparation, insulation, heating design and maximum pipe circuit lengths before ordering. The 20mm measurement refers to the overlay panel only; adhesives, levelling layers and your final floor covering can increase the finished floor height. Thermostats, wiring centres and other installation accessories may need to be selected separately. If you would like help choosing components for your project, contact Underfloor Heating Trade Supplies before ordering.

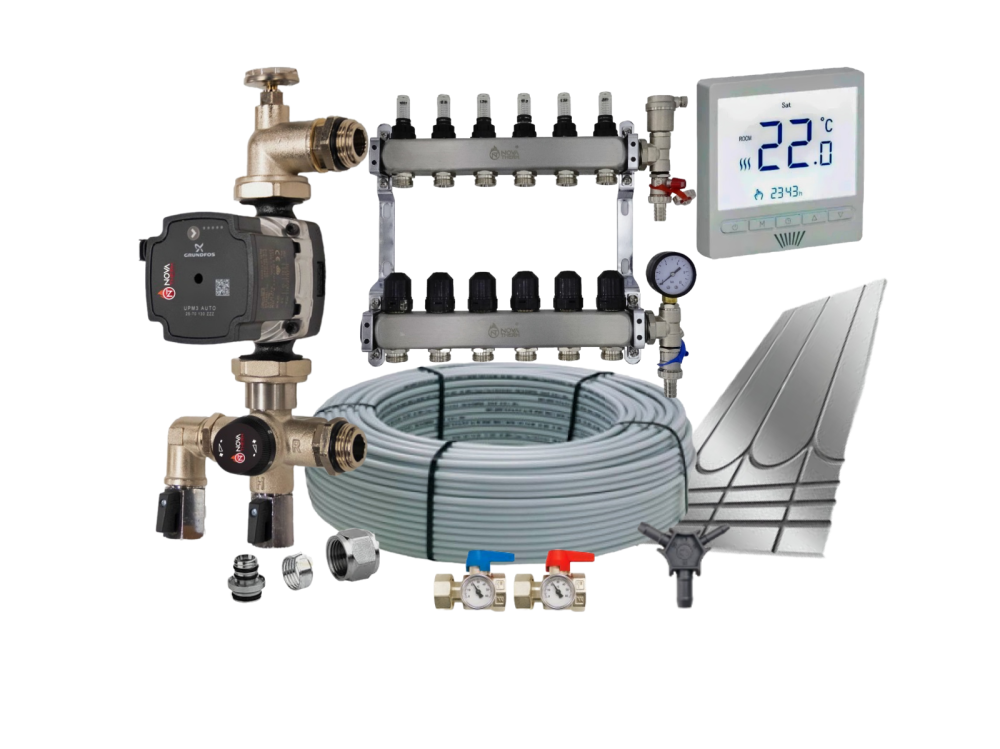

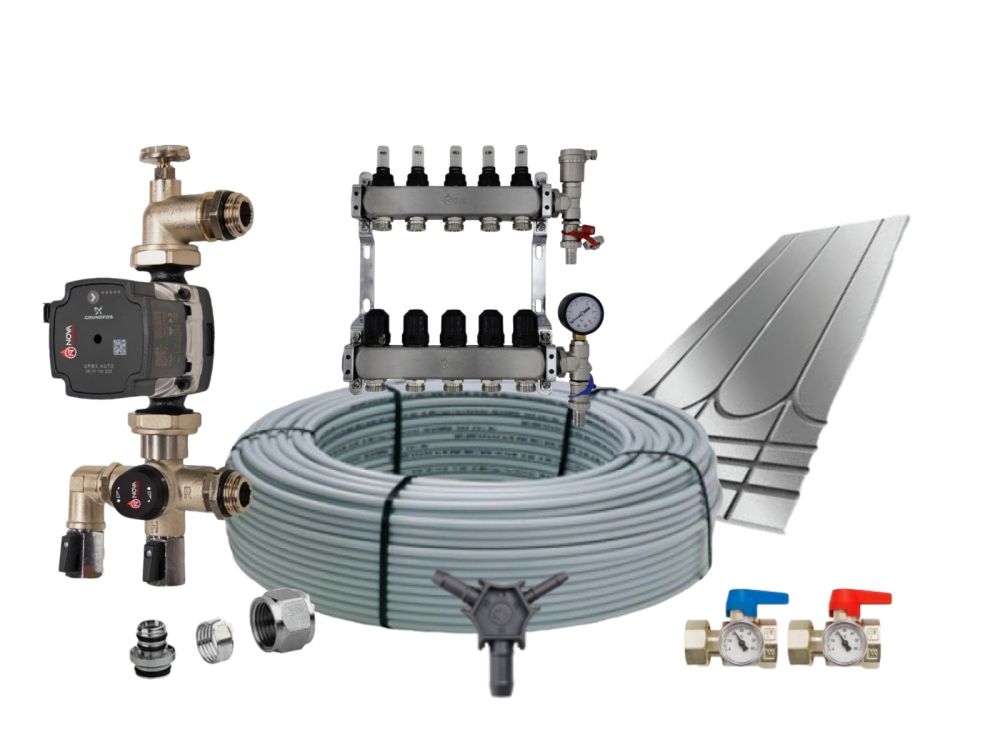

What's included in the 70m² kit?

ComponentQuantity
NovaPro Premium Dual Purpose Overlay Panels (400kPa compressive strength; 100 micron aluminium reflective foil covering)98
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump1
Automatic Temperature Control Unit & Thermomix Blending Valve1
Professional Grade 16mm Underfloor Heating Pipe500m
5-Zone Dualix Manifold (including isolating valves, temperature gauges, flow meters, drain/fill valves, automatic air vents and fixing brackets)1
Pipe Reaming Tool1
Pipe Connector Cores10

Check the supplied kit specification and optional component selections before purchase. Floor covering, levelling compounds, adhesives and controls are not assumed to be included.

Need help specifying your project? Contact Underfloor Heating Trade Supplies for friendly advice before placing your order.

Next Working Day Delivery

Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.

Free delivery

UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.

Additional Information

Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.


Item Qty
Novapro Premium Dual Purpose Panels
•High strength: 400kPa compressive strength
•High output: 100 micron aluminium reflective foil covering
98
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump 1
Automatic Temperature Control Unit & Thermomix Blending Valve 1
5 Layer Professional Grade European Standard 16 mm Underfloor Heating Pipe 500M
5 Zone Dualix Manifold, including: 1
Manifold Isolating Valves 2
Temperature Gauges 2
Lockshields with flow meters on each port –
Drain/fill valves with blank cap 2
Automatic air vents 2
Metal fixing brackets 2
Pipe Reaming Tool 1
Pipe Connector Cores 10








To view installation video click here

Frequently Asked Questions

What is an advantage of choosing the NovaPro Overlay 70m² kit?
The NovaPro Overlay Dual Purpose Kit 70m² is designed for allowing installation directly over existing floors. Its dual compatibility with electric and water-based heating systems makes it a flexible solution for large rooms needing uniform, responsive heating.
How much water does underfloor heating use per m2?
A wet underfloor heating system typically uses around 0.8 to 1.2 litres of water per square metre of floor area. However, this can vary depending on pipe diameter, pipe spacing and system design and flow rate. For example, a 50m² floor with 16mm pipes spaced at 150mm centres would hold roughly 45–55 litres of water in total.
How does the 70m2 underfloor heating system perform in larger spaces?
Covering up to 70m², the NovaPro Overlay Kit ensures even heat spread through its tight pipe layout and lightweight panels. It provides reliable performance across wide floor areas, maintaining steady warmth with quick heat-up times.
