Novapro Overlay Dual Purpose Wet Underfloor Kit - 30m2

The NovaPro Overlay Dual Purpose Underfloor Heating Kit 30m² is ideal for smaller spaces, offering a low-height heating option. It’s minimal build-up which is perfect for bathrooms, bedrooms, or conservatories. The kit provides consistent, even warmth.

Incl. Vat: £1,014.00 £845.00
Availability: In stock
SKU
npro30
We found other products you might like!

NovaPro Overlay Dual Purpose Wet Underfloor Heating Kit – 30m²

The NovaPro 30m² Dual Purpose Overlay Wet Underfloor Heating Kit is designed for bathrooms, bedrooms or smaller adjoining spaces. Its 20mm low-profile panels provide a route to installing a water-based underfloor heating system over a suitably prepared existing floor, without the depth of a conventional screeded installation. This kit is a practical choice for a modest renovation where floor height matters.

Why choose this 30m² overlay underfloor heating kit?

  • 20mm low-profile overlay panels help keep floor build-up to a minimum.
  • 150mm pipe centres support even distribution of warmth across the planned heated area.
  • Dual-purpose flooring compatibility: suitable for tile and wood finishes when installed to the relevant floor-finish and panel instructions.
  • Water underfloor heating components: includes pipework, mixing controls, a circulation pump and a 2-zone manifold.
  • Designed for approximately 30m² of heated floor area, subject to layout and heat-loss calculations.

Planning your installation

Check the net heated area, subfloor preparation, insulation, heating design and maximum pipe circuit lengths before ordering. The 20mm measurement refers to the overlay panel only; adhesives, levelling layers and your final floor covering can increase the finished floor height. Thermostats, wiring centres and other installation accessories may need to be selected separately. If you would like help choosing components for your project, contact Underfloor Heating Trade Supplies before ordering.

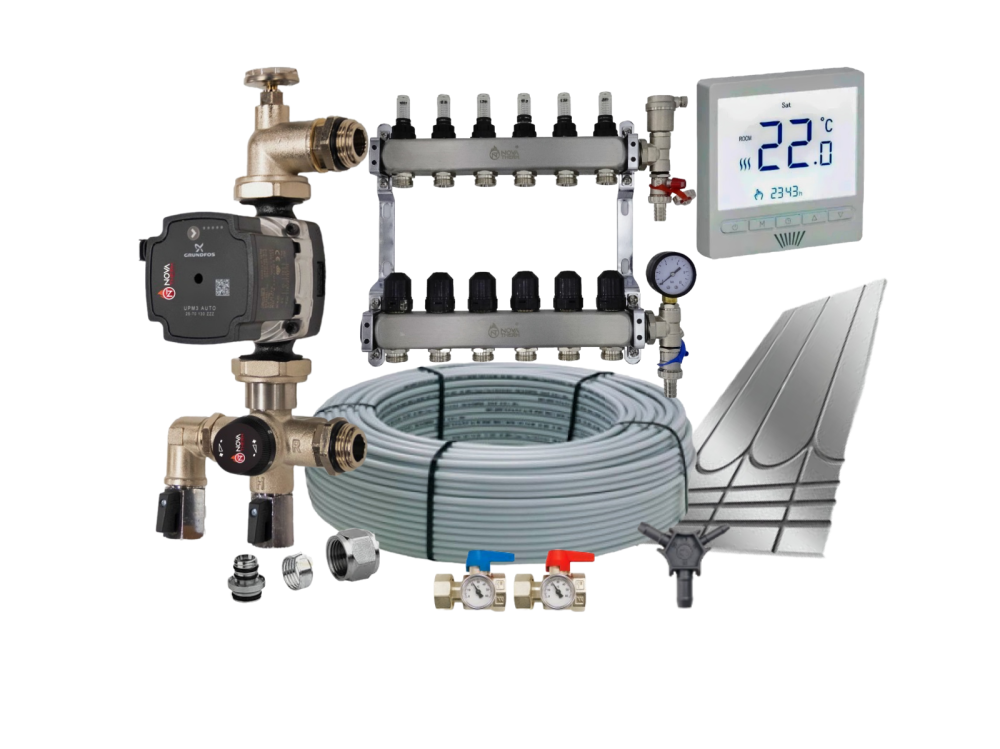

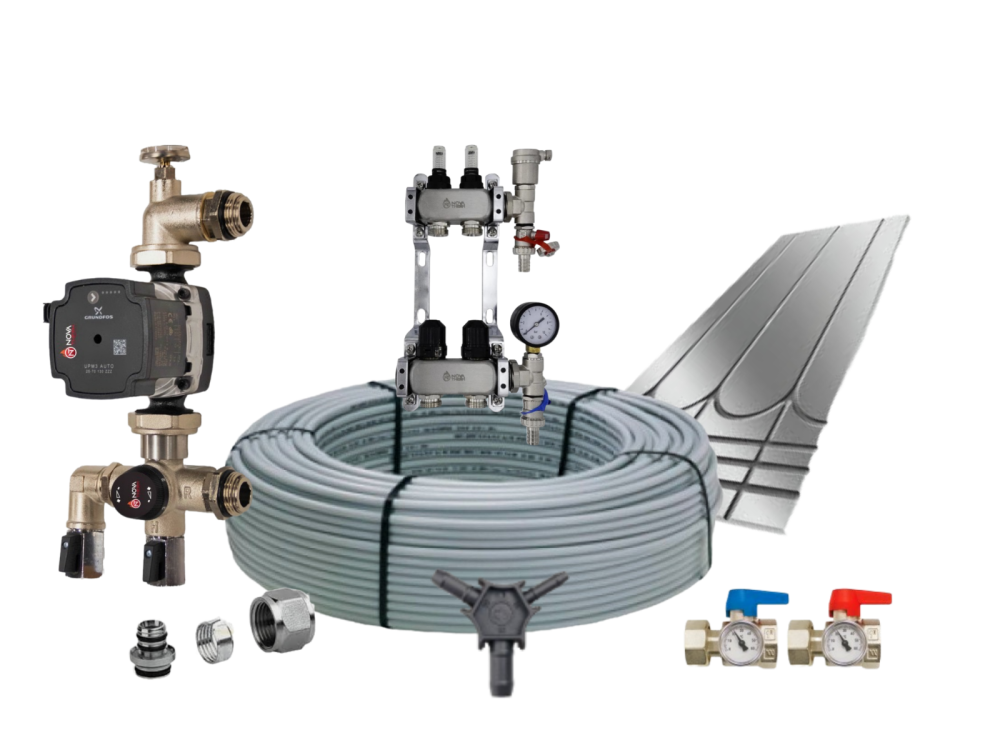

What's included in the 30m² kit?

ComponentQuantity
NovaPro Premium Dual Purpose Overlay Panels (400kPa compressive strength; 100 micron aluminium reflective foil covering)42
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump1
Automatic Temperature Control Unit & Thermomix Blending Valve1
Professional Grade 16mm Underfloor Heating Pipe200m
2-Zone Dualix Manifold (including isolating valves, temperature gauges, flow meters, drain/fill valves, automatic air vents and fixing brackets)1
Pipe Reaming Tool1
Pipe Connector Cores4

Check the supplied kit specification and optional component selections before purchase. Floor covering, levelling compounds, adhesives and controls are not assumed to be included.

Need help specifying your project? Contact Underfloor Heating Trade Supplies for friendly advice before placing your order.

Next Working Day Delivery

Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.

Free delivery

UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.

Additional Information

Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.


Item Qty
Novapro Premium Dual Purpose Panels
•High strength: 400kPa compressive strength
•High output: 100 micron aluminium reflective foil covering
42
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump 1
Automatic Temperature Control Unit & Thermomix Blending Valve 1
5 Layer Professional Grade European Standard 16 mm Underfloor Heating Pipe 200M
2 Zone Dualix Manifold, including: 1
Manifold Isolating Valves 2
Temperature Gauges 2
Lockshields with flow meters on each port –
Drain/fill valves with blank cap 2
Automatic air vents 2
Metal fixing brackets 2
Pipe Reaming Tool 1
Pipe Connector Cores 4








To view installation video click here

Frequently Asked Questions

How energy-efficient is a small water underfloor heating system compared to radiators?
An underfloor heating system uses lower water temperatures, making it more efficient than traditional radiators while offering an even, comfortable heat.
What kind of space does the 30m² NovaPro Overlay Kit cover?
The 30m² NovaPro Overlay Kit covers medium-to-large spaces up to 30m², such as open-plan living rooms or kitchen-diner combinations. The dry installation design makes it ideal for refurbishment projects where screeding isn’t practical, maintaining quick installation and minimal disruption.
What level of heat can this 30m² overlay kit provide?
The NovaPro Overlay typically offers 65 to 85 W/m² of heat output, depending on insulation and finish. That’s sufficient for primary heating in most modern homes. For older or poorly insulated rooms, confirm via a professional heat-loss assessment.
