NovaPro Overlay Dual Purpose Wet Underfloor Heating Kit – 20m²
The NovaPro 20m² Dual Purpose Overlay Wet Underfloor Heating Kit is designed for bathrooms, bedrooms or smaller adjoining spaces. Its 20mm low-profile panels provide a route to installing a water-based underfloor heating system over a suitably prepared existing floor, without the depth of a conventional screeded installation. This kit is a practical choice for a modest renovation where floor height matters.
Why choose this 20m² overlay underfloor heating kit?
- 20mm low-profile overlay panels help keep floor build-up to a minimum.
- 150mm pipe centres support even distribution of warmth across the planned heated area.
- Dual-purpose flooring compatibility: suitable for tile and wood finishes when installed to the relevant floor-finish and panel instructions.
- Water underfloor heating components: includes pipework, mixing controls, a circulation pump and a 2-zone manifold.
- Designed for approximately 30m² of heated floor area, subject to layout and heat-loss calculations.
Planning your installation
Check the net heated area, subfloor preparation, insulation, heating design and maximum pipe circuit lengths before ordering. The 20mm measurement refers to the overlay panel only; adhesives, levelling layers and your final floor covering can increase the finished floor height. Thermostats, wiring centres and other installation accessories may need to be selected separately. If you would like help choosing components for your project, contact Underfloor Heating Trade Supplies before ordering.

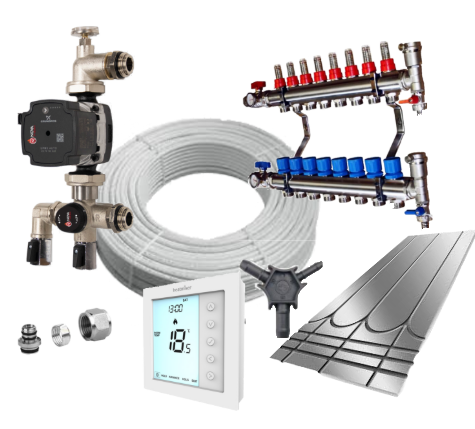

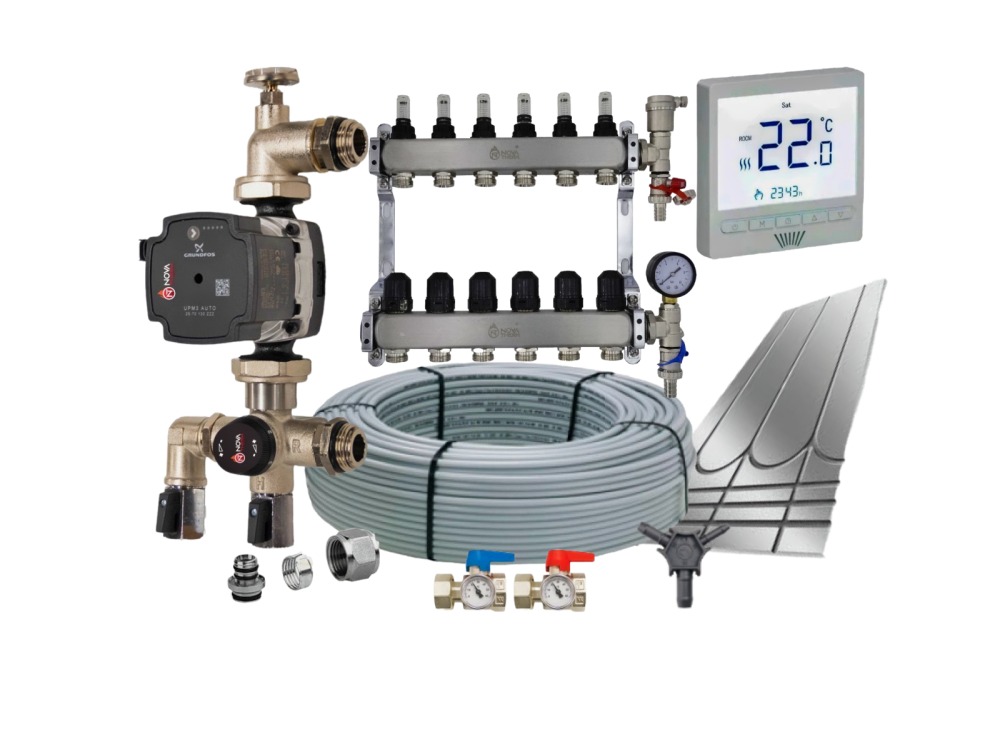

What's included in the 20m² kit?
| Component |
Quantity |
| NovaPro Premium Dual Purpose Overlay Panels (400kPa compressive strength; 100 micron aluminium reflective foil covering) |
28 |
| “A” Rated Low Energy Grundfos 3 Speed Circulation Pump |
1 |
| Automatic Temperature Control Unit & Thermomix Blending Valve |
1 |
| Professional Grade 16mm Underfloor Heating Pipe |
150m |
| 2-Zone Dualix Manifold (including isolating valves, temperature gauges, flow meters, drain/fill valves, automatic air vents and fixing brackets) |
1 |
| Pipe Reaming Tool |
1 |
| Pipe Connector Cores |
4 |
Check the supplied kit specification and optional component selections before purchase. Floor covering, levelling compounds, adhesives and controls are not assumed to be included.
Need help specifying your project? Contact Underfloor Heating Trade Supplies for friendly advice before placing your order.
