Novapro Overlay Dual Purpose Wet Underfloor Kit - 140m2

The Novapro Dual Purpose 140m2 Underfloor Heating Kit is suitable for all flooring types, whether it's wood or tile or laminate. The kit is only 20mm deep and fits a 16mm pipe.

Incl. Vat: £3,594.00 £2,995.00
Availability: In stock
SKU
npro140
We found other products you might like!

NovaPro Overlay Dual Purpose Wet Underfloor Heating Kit – 140m²

The NovaPro 140m² Dual Purpose Overlay Wet Underfloor Heating Kit is designed for extensive residential projects or suitable commercial interiors. Its 20mm low-profile panels provide a route to installing a water-based underfloor heating system over a suitably prepared existing floor, without the depth of a conventional screeded installation. This kit is a practical choice for a large-scale retrofit involving multiple heating circuits.

Why choose this 140m² overlay underfloor heating kit?

  • 20mm low-profile overlay panels help keep floor build-up to a minimum.
  • 150mm pipe centres support even distribution of warmth across the planned heated area.
  • Dual-purpose flooring compatibility: suitable for tile and wood finishes when installed to the relevant floor-finish and panel instructions.
  • Water underfloor heating components: includes pipework, mixing controls, a circulation pump and a 10-zone manifold.
  • Designed for approximately 140m² of heated floor area, subject to layout.

Planning your installation

Check the net heated area, subfloor preparation, insulation, heating design and maximum pipe circuit lengths before ordering. The 20mm measurement refers to the overlay panel only; adhesives, levelling layers and your final floor covering can increase the finished floor height. Thermostats, wiring centres and other installation accessories may need to be selected separately. If you would like help choosing components for your project, contact Underfloor Heating Trade Supplies before ordering.

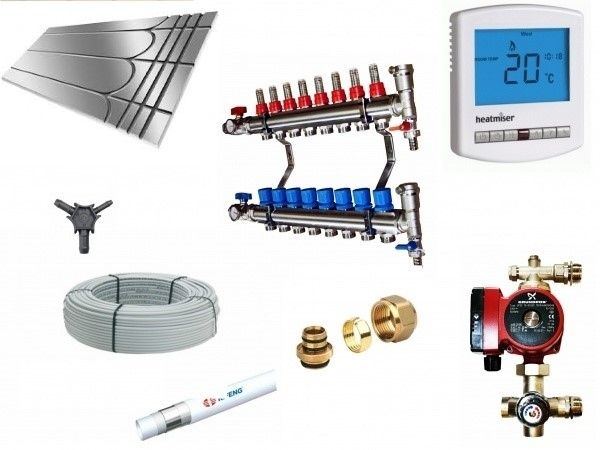

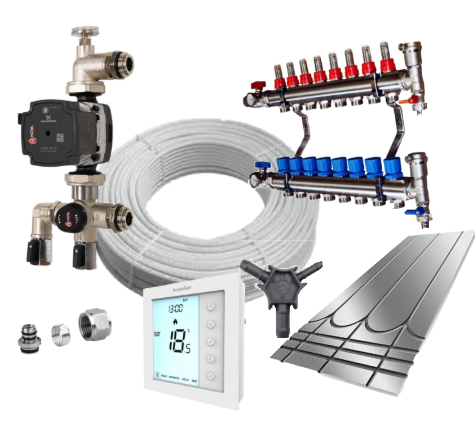

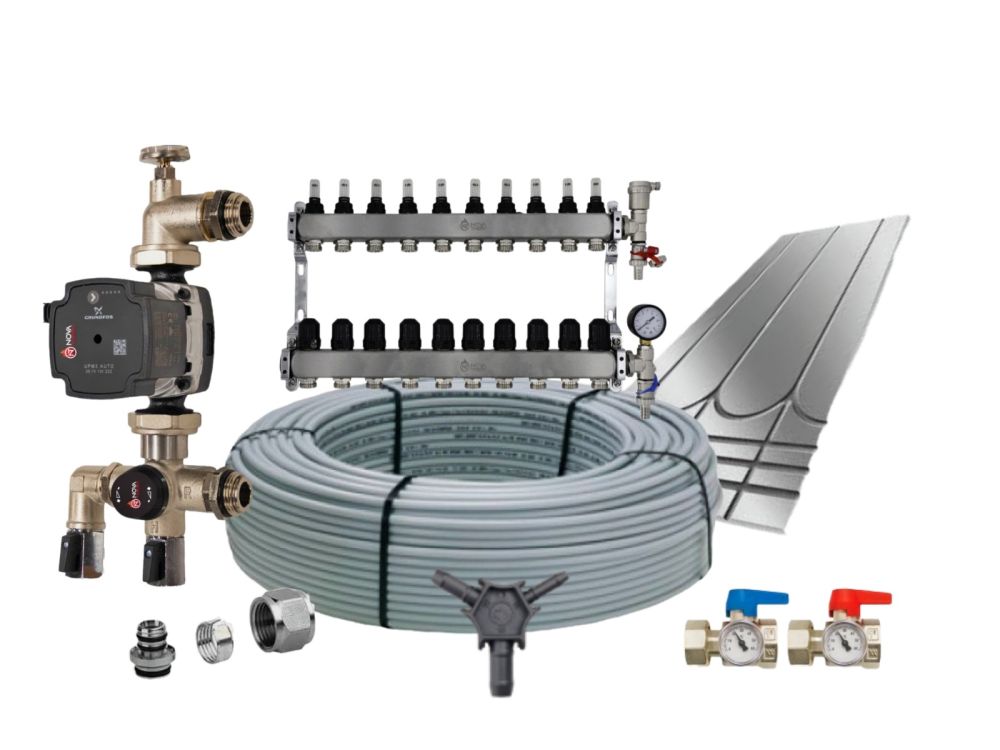

What's included in the 140m² kit?

Component Quantity
NovaPro Premium Dual Purpose Overlay Panels (400kPa compressive strength; 100 micron aluminium reflective foil covering) 195
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump 1
Automatic Temperature Control Unit & Thermomix Blending Valve 1
Professional Grade 16mm Underfloor Heating Pipe 1000m
10-Zone Dualix Manifold (including isolating valves, temperature gauges, flow meters, drain/fill valves, automatic air vents and fixing brackets) 1
Pipe Reaming Tool 1
Pipe Connector Cores 20

Check the supplied kit specification and optional component selections before purchase. Floor covering, levelling compounds, adhesives and controls are not assumed to be included.

Need help specifying your project? Contact Underfloor Heating Trade Supplies for friendly advice before placing your order.

Next Working Day Delivery

Applies to UK Mainland only. Order before 12:30pm Mon–Fri. Orders placed after 12:30pm Friday will arrive Tuesday. Saturday delivery is available at an extra cost.

Free delivery

UK Mainland orders over £250 (ex VAT). Larger or palletised orders outside UK Mainland may incur additional fees.

Additional Information

Deliveries are fulfilled by third-party couriers. Delivery times are estimates and we are not liable for delays. For detailed information about shipping, view our Shipping and Returns.


Item Qty
Novapro Premium Dual Purpose Panels
•High strength: 400kPa compressive strength
•High output: 100 micron aluminium reflective foil covering
195
“A” Rated Low Energy Grundfos 3 Speed Circulation Pump 1
Automatic Temperature Control Unit & Thermomix Blending Valve 1
5 Layer Professional Grade European Standard 16 mm Underfloor Heating Pipe 1000M
10 Zone Dualix Manifold, including: 1
Manifold Isolating Valves 2
Temperature Gauges 2
Lockshields with flow meters on each port –
Drain/fill valves with blank cap 2
Automatic air vents 2
Metal fixing brackets 2
Pipe Reaming Tool 1
Pipe Connector Cores 20








Frequently Asked Questions

Are large systems more efficient than multiple smaller systems?
Yes - a single large system with multiple zones is generally more efficient and easier to manage than several smaller systems.
What area does the Novapro Dual Purpose 140m² Underfloor Heating Kit cover?
The Novapro Dual Purpose 140m² Kit is built to heat up to 140 square metres of floor space, making it a great match for larger open zones or adjoining rooms. When using the 140m² kit in multiple rooms, ensure the room sizes come to a combined area of 140m².
What flooring types and build-up conditions is the Novapro Dual Purpose 140m² Underfloor Heating Kit suitable for?
The Novapro Dual Purpose 140m² Kit uses heavy-duty overlay panels which integrate insulation and pipe routing and are compatible with a wide range of floor finishes and heat sources. That means it works particularly well in retrofit or refurbishment situations, where you may want minimal floor-height increase and versatile floor covering options such as tile, wood or vinyl flooring.
