ECB62-ZB Wireless Wiring Centre

Skip to the end of the images gallery

Skip to the beginning of the images gallery

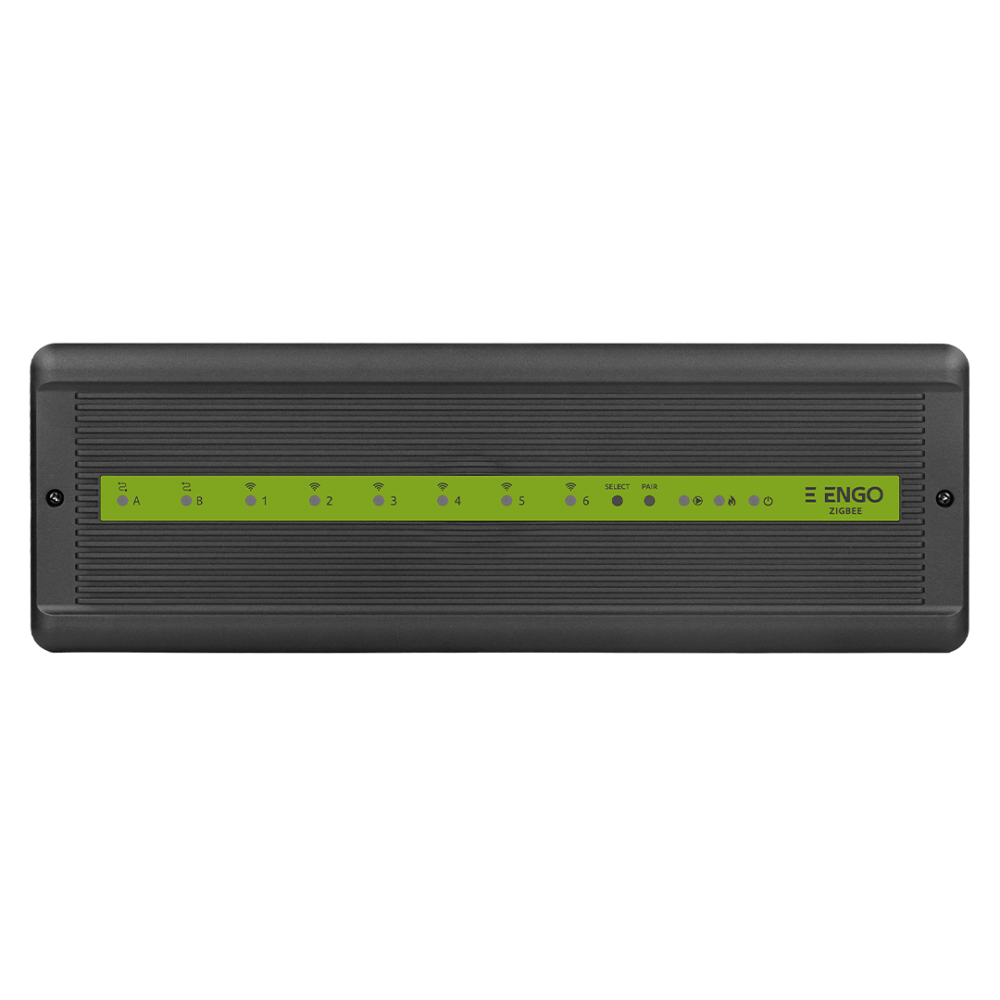

ECB62-ZB Wireless Wiring Centre

Power supply	230V AC 50Hz
Max current	10(1) A
Communication	wired and wireless ZigBee 3.0
Input	2 wired zones 6 ZigBee wireless zones
Outputs	Pump (230V) Boiler (NO/COM) Thermoelectric actuators (230V)
Dimensions [mm]	330 x 110 x 36

Incl. Vat: £108.60 £90.50

Availability: In stock

SKU

ECB62

Description

the box allows control of up to 8 heating zones, including 6 wireless and
2 wired ones
possibility to connect up to 50 actuators
the kit includes an antenna with a 1m cable mounted on a magnetic
mount, which increases the communication range
ability to set the pump and heat source shutdown delay from 0 to 15
minutes
ENGO Binding – function allows wireless linking of the box with
dedicated controllers of EONE or E25 series
requires an internet gateway
works with NC type thermoelectric actuators
uses ZigBee 3.0 technology for wireless control of temperature
controllers
mounts on DIN rail or flat surface
