30m² Multi-Zone Wet Underfloor Heating Kit
Planning water underfloor heating for a kitchen-diner and neighbouring room? The 30m² multi-zone wet underfloor heating kit is intended for a traditional screeded floor, with heating pipe clipped securely to suitable insulation before an appropriate screed is laid. It brings together principal components for designing a comfortable, water-based heating system without having to source each item separately.
Well suited to correctly designed new-builds, extensions and major renovations, this kit lets an installer divide the heated area into suitable pipe circuits connected to a manifold. Warmth is delivered through the floor rather than wall-mounted radiators, making it easier to plan flexible room layouts.
Why choose this 30m² multi-zone underfloor heating kit?
- Project-sized system: designed around approximately 30m² at the specified pipe spacing and heat-loss requirements.
- Traditional screed installation: pipes are clipped to suitable insulation and embedded in screed, not laid in retrofit overlay boards.
- Multi-circuit design: suitable for layouts with several rooms or areas where correctly planned pipe loops are needed.
- Consistent underfloor warmth: distribute heat across the floor with an appropriately designed water-based heating system.
- Trade and homeowner projects: suitable for professional installation in compatible floor constructions.
- Optional room controls: choose suitable thermostats, wiring centres and actuators where independent zone control is required.
Before ordering: confirm the heated area, heat losses, pipe spacing, available screed depth, manifold circuits and any selectable options with your installer. Independent room control requires appropriate control components, which may be additional.
What’s Included in Your 30m² Wet Underfloor Heating Kit?
Your kit brings together the main components for a traditional screeded underfloor heating installation. The pipework is secured to suitable floor insulation using fixing clips before the screed is laid.

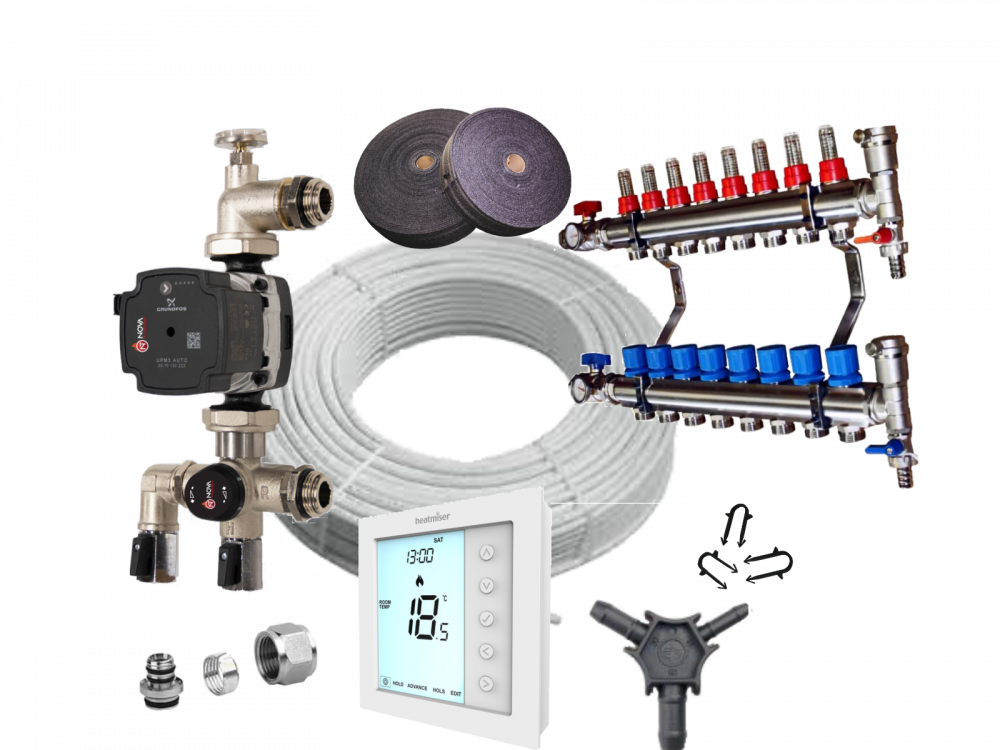

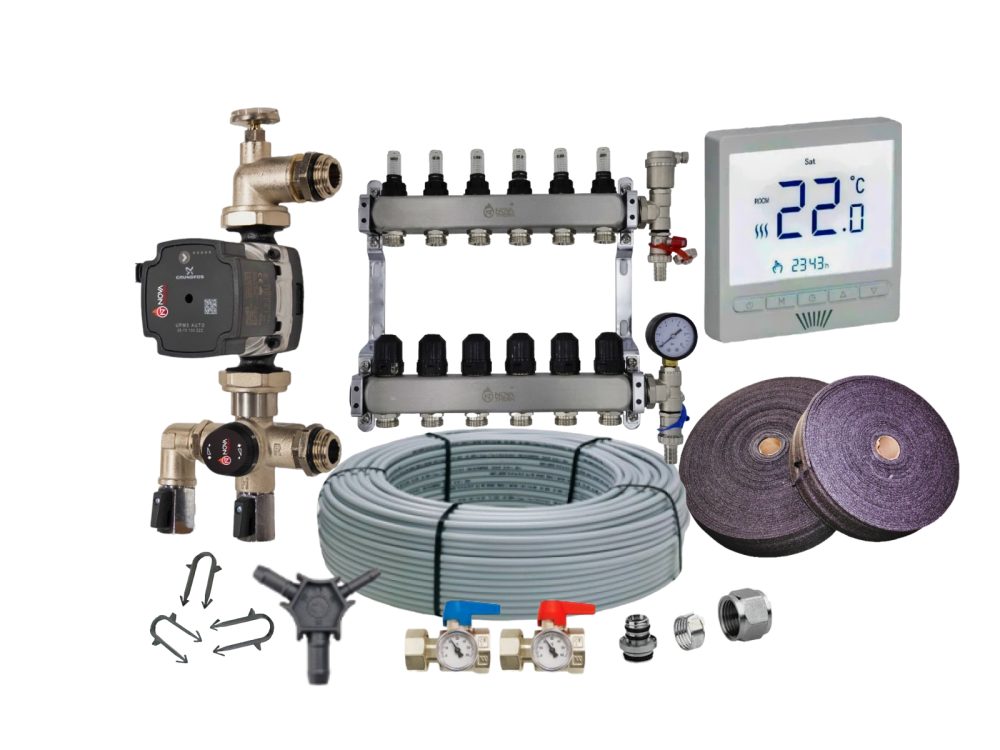

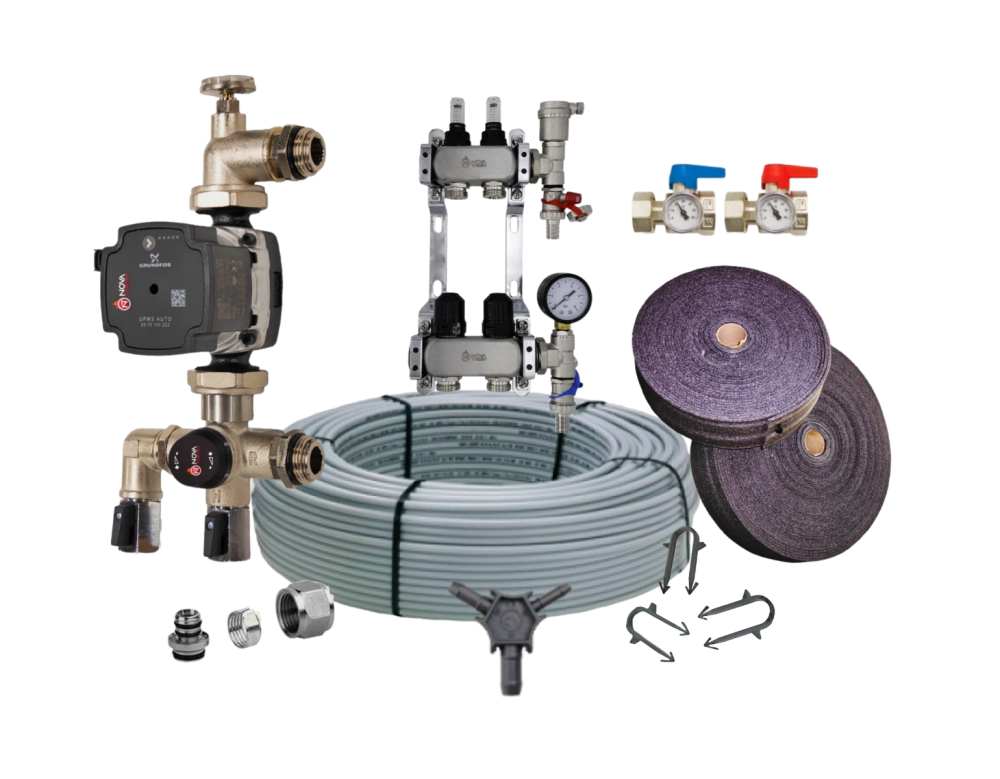

Kit Contents
| Component | Quantity |
|---|
| Grundfos circulation pump and temperature mixing valve unit | 1 unit |
| Novatherm 2-zone Dualix manifold | 1 manifold |
| Novatherm professional grade multilayer underfloor heating pipe | 150 metres |
| 60mm pipe fixing clips | 300 clips |
| Perimeter edge insulation | 50 metres |
| Pipe connector cores | 4 |
| Pipe reaming tool | 1 |
Manifold Fittings Included
The Novatherm 2-zone Dualix manifold is listed with the following fittings:
- 2 manifold isolating valves
- 2 temperature gauges
- Flow meters and lockshields on the manifold ports
- 2 drain/fill valves with blank caps
- 2 automatic air vents
- 2 metal mounting brackets
Thermostats and Optional Controls
Thermostats are not included in the standard kit. Customers can select thermostats and other available control accessories from the optional drop-down choices on this product page. Check the selections and order summary to confirm exactly what is included before checkout.
Before installing: Confirm your pipe spacing, insulation, circuit layout and screed specification with your installer.
